Product Description:

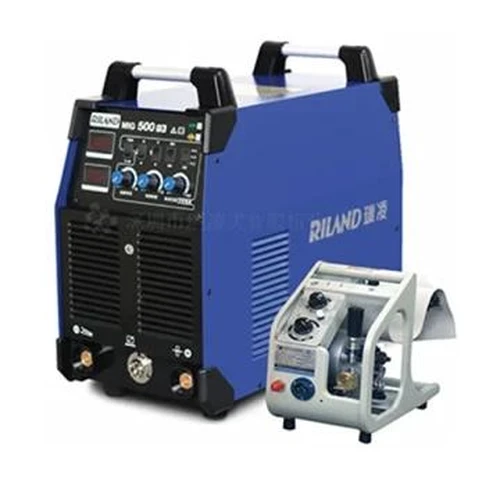

The MIG500GF is a heavy-duty industrial DC inverter welding machine supporting MIG, MIG/Gasless, and MMA (ARC/stick) welding, built with IGBT technology for stable, high-power arc performance. Running on three-phase 380V power with an external wire feeder, it offers an exceptionally wide 60-450 amp range on both MIG and MMA processes, making it one of the higher-capacity machines in this series for large-scale industrial welding.

Key Features:

- Multi-process machine: MIG, MIG/Gasless, and MMA welding in one system

- IGBT inverter technology for stable, high-power arc performance

- External wire feeder for flexible setup and continuous operation

- Three-phase AC 380V input for industrial power supply

- Exceptionally wide 60-450 amp range on both MIG and MMA

- Supports 0.8-1.2 MM MIG wire diameter

Technical Specifications:

- Model: MIG500GF

- Product Code: RDWMMIG500GF

- Process: MIG, MIG/Gasless & MMA

- Technology: IGBT Inverter

- MIG Amps Range: 60-450 Amps

- MMA Amps Range: 60-450 Amps

- Input Voltage: AC 380V ±15%, 3 Phase

- Wire Feeder: External

- MIG Wire Diameter (Approx.): 0.8-1.2 MM

- Approx. Weight: 30 KG

Use Cases:

- Large-scale industrial fabrication requiring high-current MIG and MMA capability

- Heavy plate welding and continuous-duty industrial operations

- Workshops with three-phase power needing top-tier current output

- Structural and heavy industrial metalwork on mild steel

FAQ:

Q: What welding processes does the MIG500GF support?

A: It supports MIG welding, MIG/Gasless welding, and MMA (stick) welding.

Q: What is the input power requirement?

A: It requires a three-phase AC 380V ±15% power supply.

Q: What wire diameter does it support?

A: It supports MIG wire with an approximate diameter of 0.8-1.2 MM.

Q: How does the MIG500GF compare to the MIG350GF?

A: The MIG500GF offers a higher amperage range on both MIG and MMA (60-450A versus 60-350A/40-350A) and weighs more at 30 KG versus 24 KG, reflecting its higher-capacity industrial build.
