Product Description

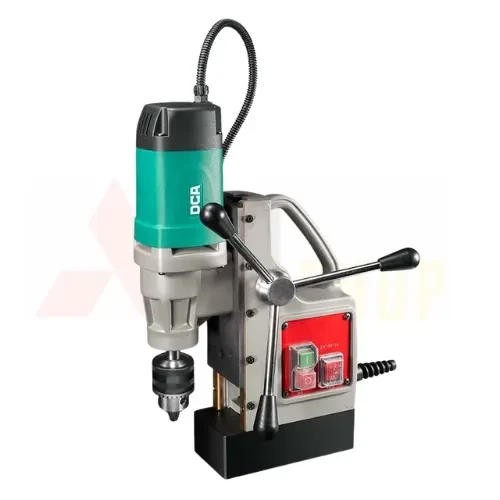

The 1500W Magnetic Drill Machine is a high-performance, heavy-duty tool built for precision drilling in steel and industrial metal applications. With a powerful 15000N magnetic base, it ensures strong adhesion to metal surfaces, providing maximum stability and safety during vertical, horizontal, and overhead drilling.

This machine supports drilling up to Ø23mm with twist drill bits and up to Ø50mm for larger cutting applications, making it suitable for demanding fabrication and construction tasks. The 1500W motor delivers strong torque, while the 390 r/min speed ensures controlled and accurate drilling in thick metal surfaces.

With a maximum stroke of 220mm and an MT2 shank connector, it offers flexibility for different tooling needs. Weighing 21 kg, this drill provides solid stability for heavy-duty industrial operations.

Use Cases

1. Steel structure and heavy fabrication work
2. Industrial and construction drilling
3. Bridge and infrastructure projects
4. Factory and workshop applications
5. On-site heavy metal drilling tasks

Technical Specifications

1. Drilling Capacity (Twist Drill): Ø23 mm
2. Max Drilling Capacity: Ø50 mm
3. Magnetism: 15000 N
4. Rated Power Input: 1500W
5. No-Load Speed: 390 r/min
6. Max Stroke: 220 mm
7. Connector: MT2 Shank
8. Net Weight: 21.0 kg
9. Application: Steel and heavy metal drilling

Frequently Asked Questions

Q1: What is the maximum drilling capacity?

It supports Ø23mm with twist drill and up to Ø50mm for larger cutting tasks.

Q2: How strong is the magnetic base?

It has a 15000N magnetic force for strong and stable holding.

Q3: Is it suitable for heavy industrial use?

Yes, it is designed for heavy-duty fabrication and construction work.

Q4: What type of connector does it use?

It uses an MT2 shank for compatibility with various tools.
