Product Description:

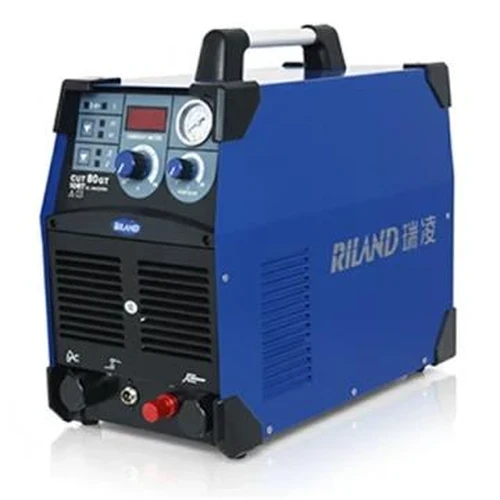

The CUT80GT is a DC inverter air plasma cutting machine built with IGBT technology, supporting both manual cutting and CNC-integrated operation. With a 20-80 amp range and running on three-phase 380V power, it delivers strong cutting capacity across carbon steel, mild steel, stainless steel, and aluminum, making it suitable for both handheld fabrication work and automated CNC cutting table setups.

Key Features:

- IGBT inverter technology for stable, precise plasma arc performance

- Supports both manual (CUT) and CNC-integrated cutting

- Cuts carbon steel, mild steel, stainless steel, and aluminum

- Three-phase AC 380V input for industrial power supply

- Uses compressed air as the plasma cutting medium

Technical Specifications:

- Model: CUT80GT

- Product Code: RDWMCUT80GT

- Process: Plasma Cutting & CNC

- Technology: IGBT

- Amps Range: 20-80 Amps

- Cutting Thickness — Carbon Steel: up to 25 mm

- Cutting Thickness — Mild Steel: 25 mm

- Cutting Thickness — Stainless Steel: 20 mm

- Cutting Thickness — Aluminium: 12 mm

- Input Voltage: AC 380V ±15%, 3 Phase

- Air Pressure: 0.4-0.55 MPa

- Air Pressure Flow: 160-170 L/min

- Approx. Weight: 21.7 KGS

Use Cases:

- Manual and CNC-integrated plasma cutting in fabrication shops

- Cutting carbon steel, mild steel, stainless steel, and aluminum plate

- Industrial cutting tables requiring automated, repeatable cuts

- Workshops needing a higher-capacity plasma cutter than entry-level units

FAQ:

Q: Can the CUT80GT be used with a CNC cutting table?

A: Yes, it supports CNC-integrated operation in addition to manual handheld cutting.

Q: What materials can it cut?

A: It can cut carbon steel, mild steel, stainless steel, and aluminum, with cutting thickness varying by material.

Q: What is the input power requirement?

A: It requires a three-phase AC 380V ±15% power supply.

Q: What air supply does it need?

A: It requires compressed air at 0.4-0.55 MPa pressure with a flow rate of 160-170 L/min.
